Wiring Diagram
Original instructions
About us
Illustration

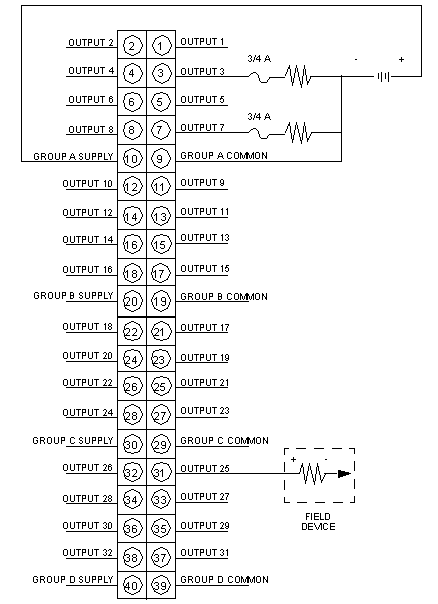

The following figure shows the 140 DDO 353 00 wiring diagram.
CAUTION
OVER CURRENT TO OUTPUTS
Protect each point with a 3/4 A, 250 V fuse.
Failure to follow these instructions can result in injury or equipment damage.
NOTE: When field wiring the I/O module, the maximum wire size that should be used is 1-14 AWG or 2-16 AWG; the minimum size is 20 AWG.
NOTE: The tightening torque must be between 0.5 Nm and 0.8 Nm.
NOTICE
DESTRUCTION OF ADAPTER
  • Before tightening the locknut to the torque 0.50...0.80 Nm, be sure to properly position the right-angle F adapter connector.
  • During tightening, be sure to maintain the connector securely.
  • Do not tighten the right-angle F adapter beyond the specified torque.
Failure to follow these instructions can result in equipment damage.
