Function
The 140 DDI 364 00 sink module accepts 24 VDC inputs.
Illustration

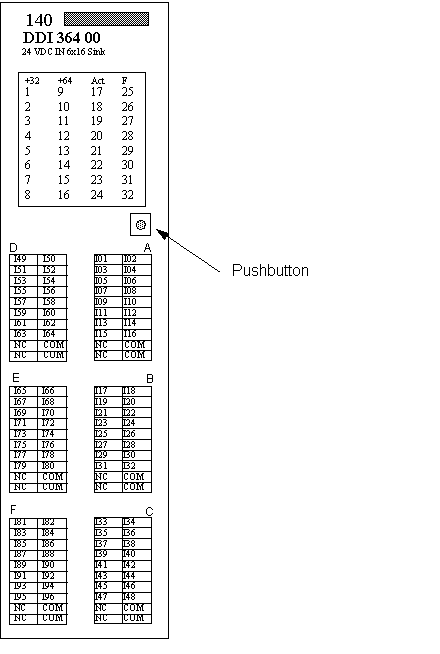

The front view of the 140 DDI 364 00 input module including terminal assignment numbers:
Recommended Cables
The following table shows recommended cables, description, and their length in meters.
Cable Part Number
Description
Length (M)
TSXCDP301
(1) HE 10 - flying leads
3
TSXCDP501
(1) HE 10 - flying leads
5
TSXCDP102
(2) HE 10 - ribbon cable
1
TSXCDP202
(2) HE 10 - ribbon cable
2
TSXCDP302
(2) HE 10 - ribbon cable
3
TSXCDP053
(2) HE 10 - round cable
0.5
TSXCDP103
(2) HE 10 - round cable
1
TSXCDP203
(2) HE 10 - round cable
2
TSXCDP303
(2) HE 10 - round cable
3
TSXCDP503
(2) HE 10 - round cable
5
Compatible Connection Sub-Bases
The following tables shows the compatible connections sub-bases.
Channels
Type
8
ABE-7H08Rxx1
8
ABE-7H08S211
16
ABE-7H16Rxx/H16Cxx
16
ABE-7H16S21
16
ABE-7H16R23
16
ABE-7H16S43
1With the splitter sub-base ABE-7ACC02
Compatible Input Adapter Sub-Base
16 Channels, ABE-7S16E2xx/7P16F3xx
