Wiring Diagram
Original instructions
About us
Illustration

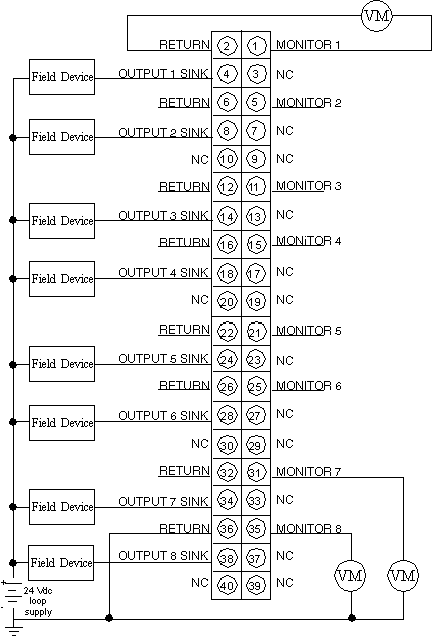

The following figure shows the wiring diagram of the 140 ACO 130 00 module:
External Wiring Recommendation
  1. The user supplies the current and voltage sources (installation and calibration of fuses are at the discretion of the user).
  2. Use shielded signal cable. In noisy environnements, twisted shielded cable is recommended.
  3. Shielded cables should be connected to the PLC’s ground.
  4. A Shield Bar (STB XSP 3000 and STB XSP 3010/3020) should be used to connect the shielded cable to ground.
  5. All terminals labeled ‘RETURN" are common inside the module.
  6. N / C = Not connected.
NOTE: VM is an optional voltmeter that can be connected to read voltage that is proportional to the current. Wiring to this terminal is limited to 1 meter maximum.
NOTE: When field wiring the I/O module, the maximum wire size that should be used is 1-14 AWG or 2-16 AWG; the minimum size is 20 AWG.
NOTE: The tightening torque must be between 0.5 Nm and 0.8 Nm.
NOTICE
DESTRUCTION OF ADAPTER
  • Before tightening the locknut to the torque 0.50...0.80 Nm, be sure to properly position the right-angle F adapter connector.
  • During tightening, be sure to maintain the connector securely.
  • Do not tighten the right-angle F adapter beyond the specified torque.
Failure to follow these instructions can result in equipment damage.
