The Analog RTD Input 8 Channel module accepts input from up to eight 2-, 3-, and 4-wire RTD sensors, and provides temperature measurement data to the Quantum CPU.

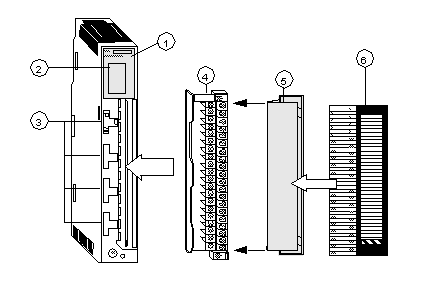

The following figure shows the 140 ARI 030 10 module and its components.
1
Model Number, Module Description, Color Code
2
LED Display
3
Fuse Cutouts
4
Field Wiring Terminal Strip
5
Removable Door
6
Customer Identification Label (Fold label and place it inside door)
NOTE: The field wiring terminal strip (Modicon #140 XTS 002 00) must be ordered separately. (The terminal strip includes the removable door and label.)
