Indicators
|
|
|
Original instructions
|
|
Indicators
|
|
|
Original instructions
|
|

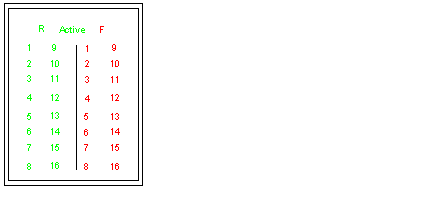

Type of LED
|
LED Id
|
Color
|
State
|
Meaning
|
|
System State LED
|
R
|
Green
|
ON
|
Power ON
|
|
OFF
|
Power OFF
|
|||
|
Active
|
Green
|
ON
|
The module is communicating with the host.
|
|
|
OFF
|
The module is not communicating with the host.
|
|||
|
F
|
Red
|
ON
|
An internal diagnostic error is detected.
|
|
|
OFF
|
No internal diagnostic error is detected.
|
|||
|
Channel LED
|
1 .. 16
|
Green
|
ON
|
The channel is ON.
|
|
OFF
|
The channel is OFF.
|
|||
|
Red
|
ON
|
Inoperative channel or broken wire detected.
|
||
|
OFF
|
Operative channel and wire.
|
