Presentation

Function

140 SAI 940 00S is a 16 bits 4-20 mA, 8-channel current analog input module.

NOTE: If an error is detected during power-up self tests, the module is unable to start any communication with the host until the error disappears.

Illustration

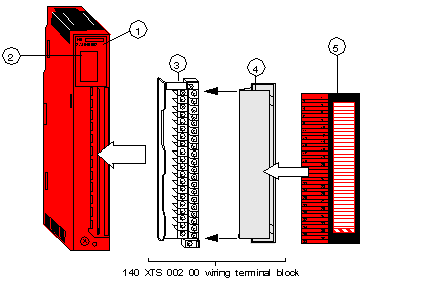

The following figure shows the 140 SAI 940 00S module and its components.

Model Number, Module Description, Color Code

LED Display

Field Wiring Terminal Block (not provided with the module)

Removable Door (not provided with the module)

Red Customer Identification Label (Fold label provided with the module and place it inside the door)

NOTE: The housing of safety modules is red and a red customer identification label is provided with Quantum Safety I/O modules. It shall be placed on the terminal block.

Grounding Kit

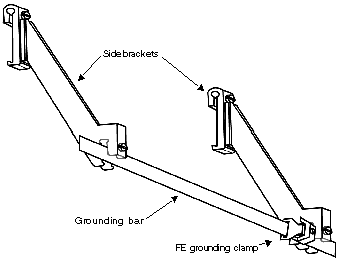

It is recommanded to use the STB XSP 3000 earthing kit and the (STB XSP 3010 or STB XSP 3020) grounding clips. The following figure shows those elements.

Kit	Comes with...
STB XSP 3000	two side brackets, one 1 m grounding bar and one FE grounding clamp
STB XSP 3010	10 small cable clamps for 1.5mm to 6.5mm cable
STB XSP 3020	10 medium cable clamps for 5mm to 11mm cable
