The TSX DMY 28RFK module works independently from the PLC task. It has its own inputs/outputs (16I/12O) and therefore guarantees a reaction time of less than 1 ms.
At the same time, but at the rate of the PLC task allocated to them, the variables within the module are exchanged with the PLC processor.
These variables are :
-
the image bits of the state of the physical inputs of the module (%I),
-
the image bits of the state of the physical and auxiliary outputs of the module (%I),
-
the command bits of the module's outputs (%Q).

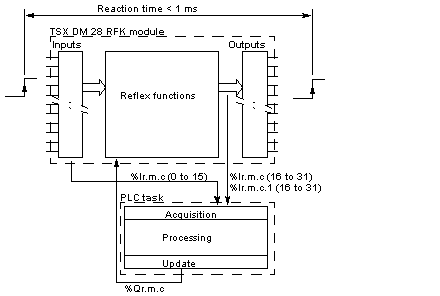

The following illustration summarizes the operating principle of the reflex discrete module.
