Physical description of Discrete modules with HE10 connectors
(Original Document)
About us
At a Glance
The following is a physical description of Discrete I/O modules with HE10 connectors.

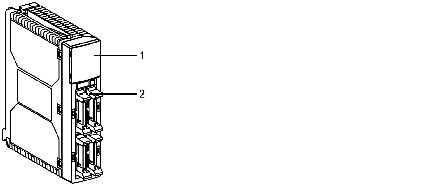

Illustration
The I/O modules are housed in plastic cases which provide IP20 protection for all the electronic parts.
Elements
The following table describes the different elements of the Discrete I/O modules with HE10 connectors.
Number
Description
1
Module display and diagnostics block.
2
HE10 connector, with a protective cover.
They are used to connect I/Os to the sensors and pre-actuators either directly or via TELEFAST 2 connection bases.
