This is an overview of the actuator connections on base TELEFAST 2 ABE-7R16T231, with 1 OF electromechanical relay, distribution of a common per group of 8 channels.
Illustration

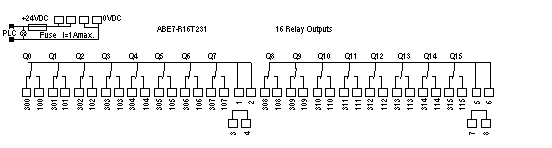

Description of the connection terminal blocks.
Illustration

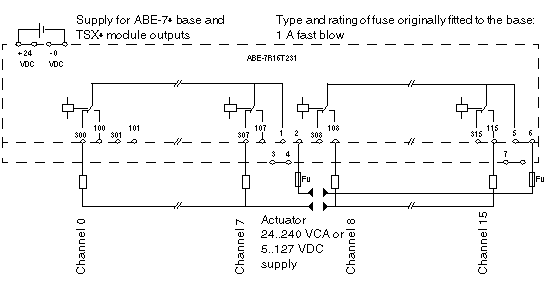

Output connection functions.
Fu
Fuse rating according to the load.
NOTE: Protection of relay contacts:
a protection circuit must be mounted onto the terminals of each actuator:
RC or MOV circuit in the case of alternating current;
