Actuator connections on the ABE-7S08S2B0 static output adaptation base
(Original Document)
About us
At a Glance
This is an overview of the actuator connections on
TELEFAST 2 ABE-7S08S2B0
bases, 8 static outputs, 24 VDC, 0.5 A.

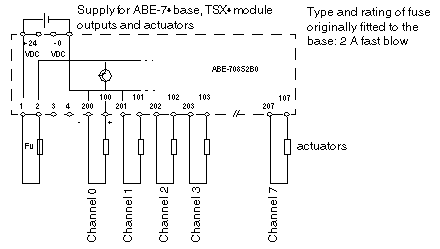

Illustration
Description of the connection terminal blocks.
Illustration
Output connection functions.
Fu
Fuse rating according to the load.
