Actuator connections on ABE-7S16S2B0/S2B2 static output adaptation bases
(Original Document)
About us
At a Glance
This is an overview of actuator connections on the
TELEFAST 2 ABE-7S16S2B0/S2B2
bases, 16 static outputs, 24 VDC, 0.5 A.
Illustration
Description of the connection terminal blocks.
Illustration

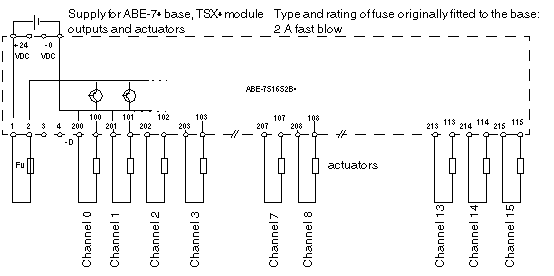

Output connection functions.
Fu
Fuse rating according to the load.
