Actuator connections on non removable relay output adaptation bases ABE-7R16S212.
(Original Document)
About us
At a Glance
This is an overview of the actuator connections for base TELEFAST 2 ABE-7R16S212, 16 relay outputs, 1F, with distribution of the polarities by 8 channel group.
Illustration

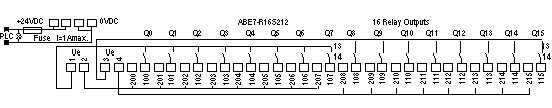

Description of the connection terminal blocks.
Illustration

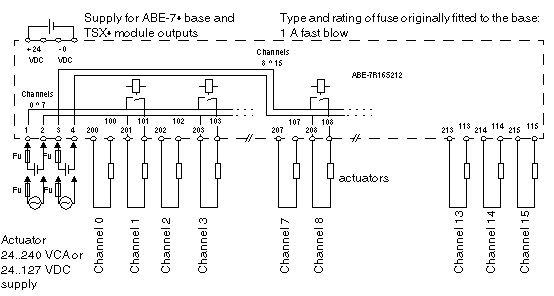

Output connection functions.
Fu
Fuse rating according to the load.
NOTE: Protection of relay contacts:
  • a protection circuit must be mounted onto the terminals of each actuator:
    • RC or MOV circuit on alternating current;
    • discharge diode for direct current.
