Actuator connections on non removable relay output adaptation bases ABE-7R08S111/16S111.

At a Glance

This is a description of the actuator connections on:

base TELEFAST 2 ABE-7R08S111, 8 relay outputs, 1 F twice , 4 common DC or AC currents;
base TELEFAST 2 ABE-7R16S111, 16 relay outputs, 1 F twice , 8 common DC or AC currents.

Illustration

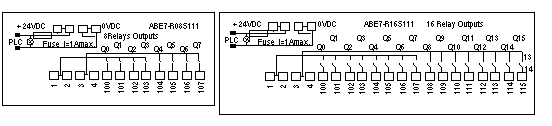

Description of the connection terminal blocks.

Illustration

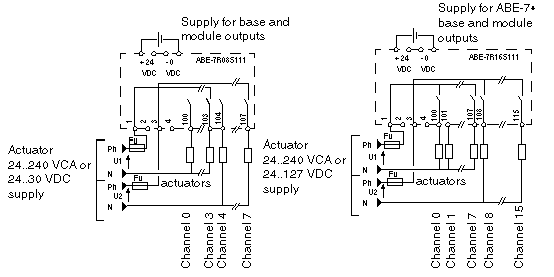

Output connection functions.

Fu

Fuse rating according to the load.

NOTE: The bases are originally equipped with a general-purpose, fast-blow fuse rated 1 A.

Protection of relay contacts:

a protection circuit must be mounted onto the terminals of each actuator:
- RC or MOV circuit in the case of alternating current;
- discharge diode for direct current.
