Connecting the TSX DMY 28FK module
(Original Document)
About us
At a Glance
The TSX DMY 28FK mixed I/O module comprises 16 x 24 VDC fast input channels and 12 x 24 VDC/ 0.5A output channels.
This module is fitted with 2 male HE10 connectors:
Circuit Diagram

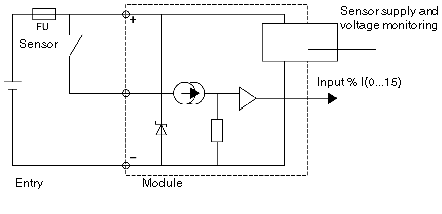

The circuit diagram for an input is shown below.
Circuit Diagram

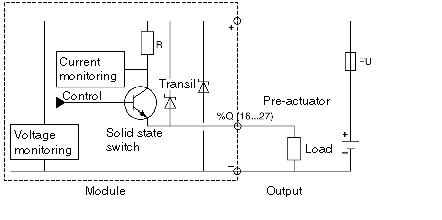

The circuit diagram for an output is shown below.
Module connection

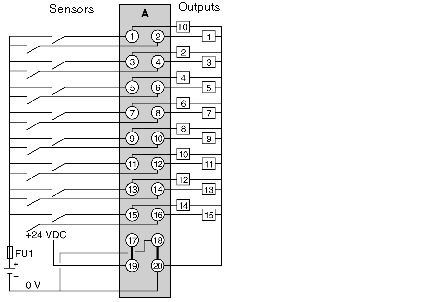

The following diagram shows the connection of the module to the sensors.
FU1
0.5 A quick-blow fuse.
Module connection

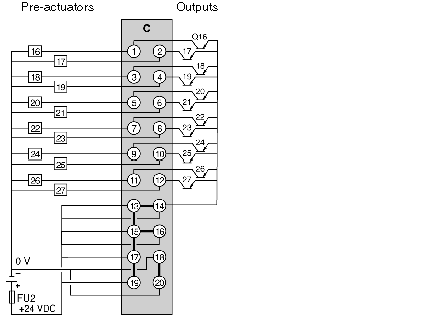

The diagram below shows the connection of the module to the pre-actuators.
FU2
10 A quick-blow fuse.
