TELEFAST 2 Connection Bases Catalog
(Original Document)
About us
At a Glance
The catalog of TELEFAST 2 bases for discrete input/output modules is shown here.
Catalog
The table below shows the catalog of connection interface bases for 8/12/16-channel discrete I/Os.
Reference ABE-7H••
08R10
08R11
08R21
08S21
12R50
16R50
12R10
12R20
12R21
16R10
16R11
16R20
16R21
16R23
16R30
16R31
12S21
16S21
16S43 (1)
16F43 (2)
Base types
Connection interface bases for 8/12/16-channel discrete I/Os.
Sub groups
8-channel bases
Compact 12 and 16-channel bases
12 and 16-channel bases
Illustration
TELEFAST 2 base
TELEFAST 2 base
Description
-
with 1 isolator/channel
-
-
with 1 isolator/channel
with 1 fuse + 1 isolator/channel
(1) for inputs (2) for outputs
Illustration
The principle for identifying the connection interface bases for 8/12/16-channel discrete I/Os is as follows.
Description
The table below describes the different elements which make it possible to identify the connection interface bases for 8/12/16-channel discrete I/Os.
Number
Description
(1)
08 = 8-channel base
12 = 12-channel base
16 = 16-channel base
(2)
Primary function:
  • R = simple connection
  • S = isolator/channel
  • F = fuse/channel
(3)
1 = with 1 screw terminal per channel on 1 level
2 = with 2 screw terminals per channel on 2 levels
3 = with 3 screw terminals per channel on 3 levels
4 = with 2 screw terminals per channel on 1 level
5 = with 1 screw terminal per channel on 2 levels
(4)
0 or even number = without LED display per channel
odd number = with LED display per channel
Catalog
The table below shows the catalog of bases for connection and adaptation interfaces for inputs with 16 isolated channels.
ABE-7S•• reference
16E2B1
16E2E1
16E2E0
16E2F0
16E2M0
Base types
Bases for connection and adaptation interfaces for inputs with 16 isolated channels.
Illustration
TELEFAST 2 base
Description
16 x 24 VDC inputs
16 x 48 VDC inputs
16 x 48 VAC inputs
16 x 110...120 VAC inputs
16 x 220...240 VAC inputs
The table below shows the catalog of bases for connection and adaptation interfaces for static outputs with 8 and 16 channels.
ABE-7S•• reference
08S2B0
08S2B1
16S2B0
16S2B2
Base types
Bases for connection and adaptation interfaces for static outputs with 8 and 16 channels.
Sub groups
8-channel bases
16-channel bases
Illustration
TELEFAST 2 base
TELEFAST 2 base
Description
8 static 24 VDC / 0.5A outputs, with error detection transfer to PLC.
8 static 24 VDC / 2A outputs, with error detection transfer to PLC.
16 static 24 VDC / 0.5A outputs, with error detection transfer to PLC.
16 static 24 VDC / 0.5A outputs, without error detection transfer to PLC.
The table below shows the catalog of bases for connection and adaptation interfaces for relay outputs with 8 and 16 channels.
ABE-7R•• reference
08S111
08S210
16S111
16S210
16S212
Base types
Bases for connection and adaptation interfaces for relay outputs with 8 and 16 channels.
Sub groups
8-channel bases
16-channel bases
Illustration
TELEFAST 2 base
TELEFAST 2 base
TELEFAST 2 base
Description
8 relay outputs, 1 F with + or alternating polarity distribution.
8 relay outputs, 1 F, potential free contact.
16 relay outputs, 1 F, 2 x 8 shared + or alternating.
16 relay outputs, 1 F, potential free contact.
16 relay outputs, 1 F with distribution of the 2 polarities by 8-channel group.
The table below displays the catalog entry showing the connection base for the adapter splitting 16 channels into 2 x 8 channels.
ABE-7A•• reference
CC02
Base types
Bases for adapter splitting 16 channels into 2 x 8 channels.
Illustration
TELEFAST 2 base
Description
Allows splitting of:
  • 16 channels into two x 8 channels
  • 12 channels into 8 channels + 4 channels

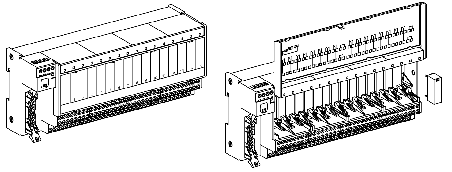

The table below shows the catalog of output adaptation interface bases with or without removable electromechanical or static relays with 16 channels.
ABE-7•• reference
R16T210
P16T210
P16T214
R16T212
P16T212
P16T215
P16T318
Base types
Output adaptation interface bases with or without removable electromechanical or static relays with 16 channels
Sub groups
Output bases, 1 F, potential free contact.
Output bases, 1 F, distribution of the 2 polarities by 8-channel group.
Output base, 1 F, distribution of the 2 polarities by 4-channel group.
Illustration
TELEFAST 2 base
Description
with 10-mm wide electro-mechanical relay
10-mm wide relay not provided
10-mm wide relay not provided, 1 fuse/channel
with 10-mm wide electro-mechanical relay
10-mm wide relay not provided
10-mm wide relay not provided, 1 fuse/channel
12.5-mm wide relay, not provided, 1 fuse + 1 isolator/channel

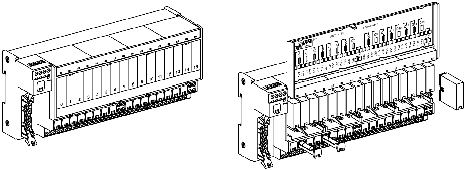

The table below shows the catalog of output adaptation interface bases with or without removable electromechanical or static relays with 16 channels (continued).
ABE-7•• reference
R16T230
R16T330
P16T330
P16T334
R16T231
R16T332
P16T332
R16T370
Base types
Output adaptation interface bases with or without removable electromechanical or static relay with 16 channels (continued).
Sub groups
Output bases, 1 OF, potential free contact.
Output bases, 1 OF, shared by 8-channel group.
Output bases, 1 OF, distribution of the 2 polarities by 8-channel group.
Output bases, 2 OF, potential free contact.
Illustration
TELEFAST 2 base
Description
with 10-mm wide electro-mechanical relay
with 12.5-mm wide electro-mechanical relay
12.5-mm wide relay, not provided
12.5-mm wide relay, not provided, 1 fuse/channel
with 10-mm wide electro-mechanical relay
with 12.5-mm wide electro-mechanical relay
12.5-mm wide relay, not provided
with 12.5-mm wide electro-mechanical relay
The table below shows the catalog of input bases for 12.5-mm wide static relays.
ABE-7P•• reference
16F310
16F312
Base types
Input bases for 12.5-mm wide static relays
Illustration
TELEFAST 2 base
Description
potential free
distribution of the 2 polarities by 8-channel group
