The TSX DSY 64T2K module comprises 64 positive logic transistor output channels for direct current.
This module is fitted with 4 male HE10 connectors:
-
connector A for outputs 0 to 15;
-
connector B for outputs 16 to 31;
-
connector C for outputs 32 to 47;
-
connector D for outputs 48 to 63.

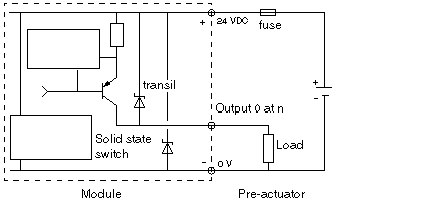

The circuit diagram for an output is shown below.

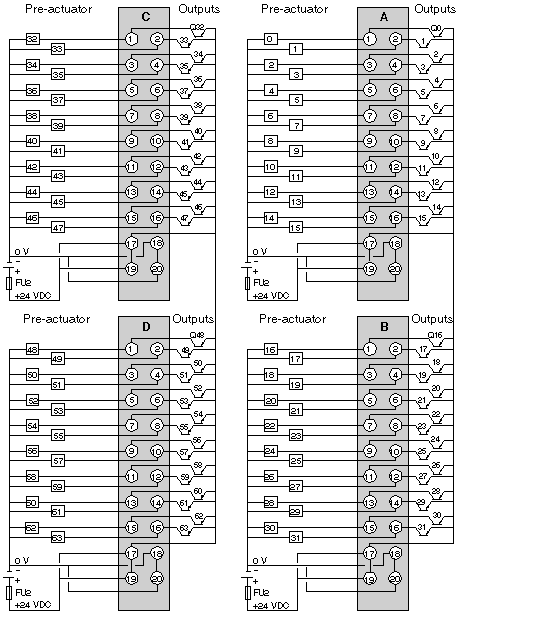

The diagram below shows the connection of the module to the pre-actuators.
NOTE: It is compulsory to connect:
