The TSX DSY 16S5 module comprises 16 bidirectional triode thyristor output channels.
This module is equipped with a removable 20 post screwed connection terminal block, allowing outputs to be connected:

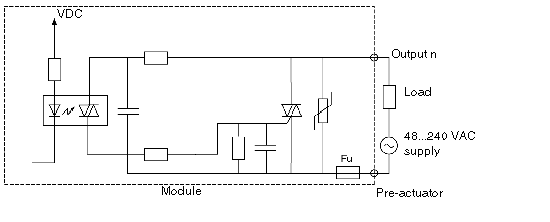

The circuit diagram for an output is shown below.

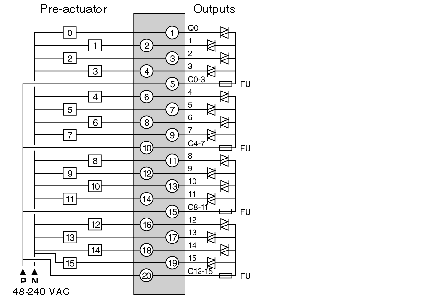

The diagram below shows the connection of the module to the pre-actuators.
FU
Ultra-quick blow interchangeable 6,3 A fuse
