The TSX DSY 16R5 module comprises 16 relay output channels for 3 A thermal current.
This module is equipped with a removable 20 post screwed connection terminal block, allowing outputs to be connected:

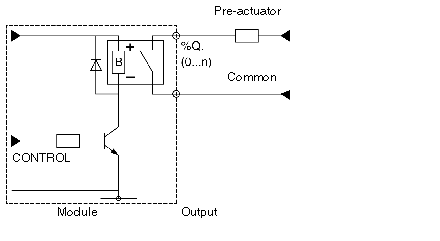

The circuit diagram for an output is shown below.

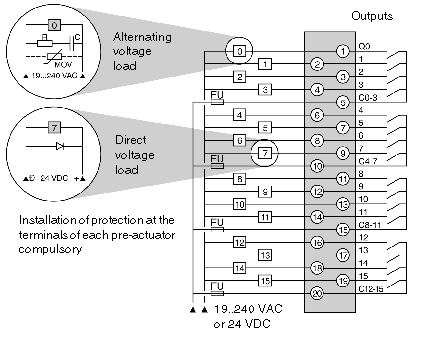

The diagram below shows the connection of the module to the pre-actuators.
NOTE: In the event of pre-actuator supply voltage being obtained from a tri-phase network which is equal to or greater than 200 VAC, the pre-actuators must be supplied from the same phase.
