Connecting the TSX DSY 08R4D module
(Original Document)
About us
At a Glance
The TSX DSY 08R4D module comprises 8 x protected relay output channels for direct current.
This module is equipped with a removable 20 post screwed connection terminal block, allowing outputs to be connected:

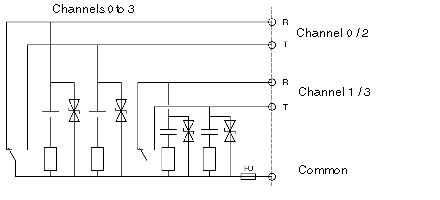

Circuit Diagram
The circuit diagram for an idle / operation output is shown below.
R
Idle
T
Operation
FU
Quick-blow interchangeable 6.3 A fuse 1 fuse per common.

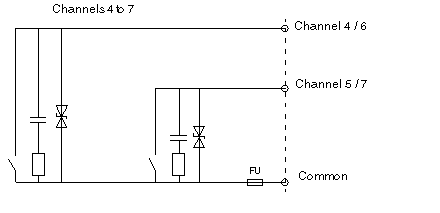

Circuit Diagram
The circuit diagram for an operation output is shown below.
FU
Quick-blow interchangeable 6.3 A fuse 1 fuse per common.

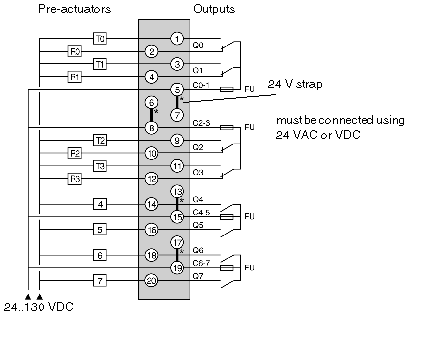

Module connection
The diagram below shows the connection of the module to the pre-actuators.
FU
6.3 A quick-blow fuse
