Connecting the TSX DSY 16T3 module
(Original Document)
About us
At a Glance
The
TSX DSY 16T3
module comprises 16 x 48 VDC protected transistor output channels.
This module is equipped with a removable 20 post screwed connection terminal block, allowing outputs to be connected:
Circuit Diagram

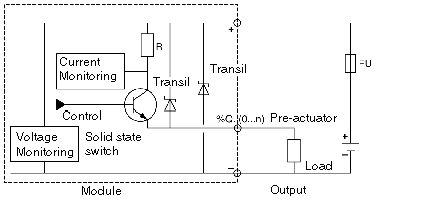

The circuit diagram for an output is shown below.
Module connection

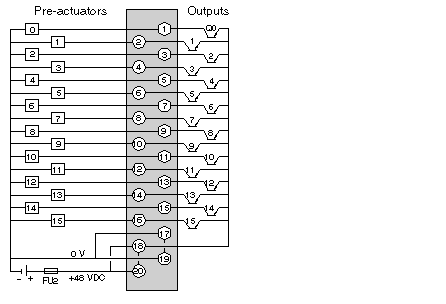

The diagram below shows the connection of the module to the pre-actuators.
FU2
10 A quick-blow fuse
