Connecting the TSX DSY 08T22 module
(Original Document)
About us
At a Glance
The
TSX DSY 08T22
module comprises 8 x 24 VDC protected transistor output channels.
This module is equipped with a removable 20 post screwed connection terminal block, allowing outputs to be connected:
Circuit Diagram

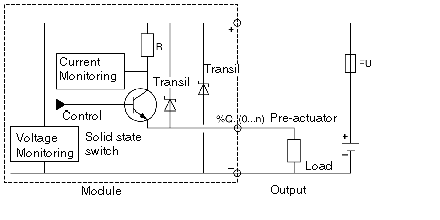

The circuit diagram for an output is shown below.
Module connection

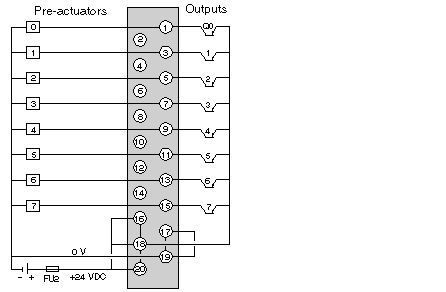

The diagram below shows the connection of the module to the pre-actuators.
FU2
16 A quick-blow fuse
