The TSX DSY 08T2 module comprises 8 x 24 VDC protected transistor output channels.
This module is equipped with a removable 20 post screwed connection terminal block, allowing outputs to be connected:

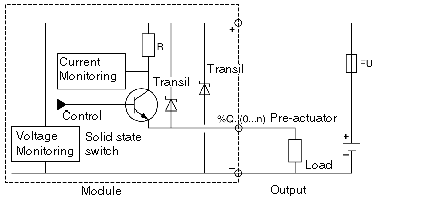

The circuit diagram for an output is shown below.

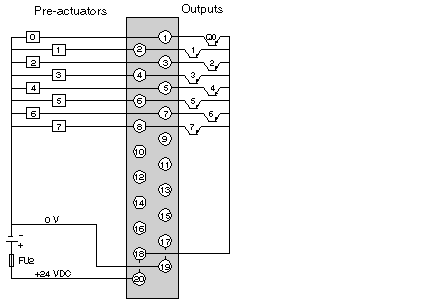

The diagram below shows the connection of the module to the pre-actuators.
FU2
6.3 A quick-blow fuse
