Connecting the TSX DEY 16FK module
(Original Document)
About us
At a Glance
The
TSX DEY 16FK
module comprises 16 x 24 VDC type 1 fast input channels.
This module is equipped with a male
HE10
connector (A) linked to the connection of inputs 0 to 15.
Principle Diagram

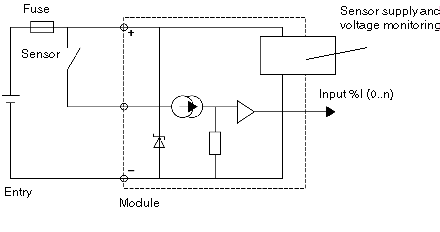

The circuit diagram for an input is shown below.
Module connection

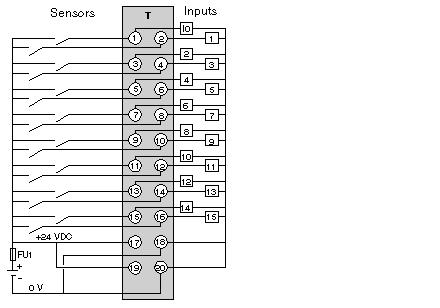

The following diagram shows the connection of the module to the sensors.
FU1
0.5 A quick-blow fuse
