Connecting the TSX DEY 32D3K module
(Original Document)
About us
At a Glance
The
TSX DEY 32D3K
module comprises 32 x 48 VDC type 2 inputs.
This module is fitted with 2 male
HE10
connectors:
connector A for inputs 0 to 15;
connector C for inputs 16 to 31.
Principle Diagram

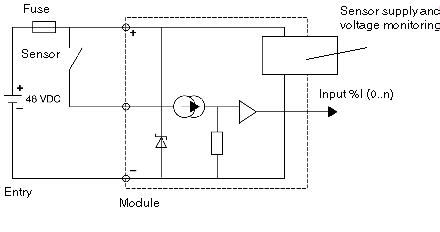

The circuit diagram for an input is shown below.
Module connection

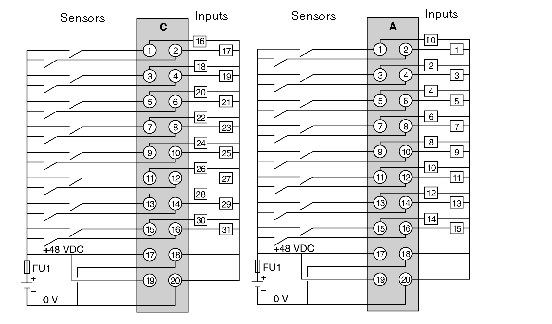

The following diagram shows the connection of the module to the sensors.
FU1
0.5 A quick-blow fuse
