Connecting the TSX DEY 32D2K module
(Original Document)
About us
At a Glance
The
TSX DEY 32D2K
module comprises 32 x 24 VDC type 1 inputs.
This module is fitted with 2 male
HE10
connectors:
connector A for inputs 0 to 15;
connector B for inputs 16 to 31.

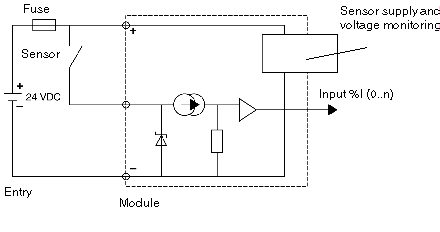

Input circuit diagram
The circuit diagram for the inputs is shown below.

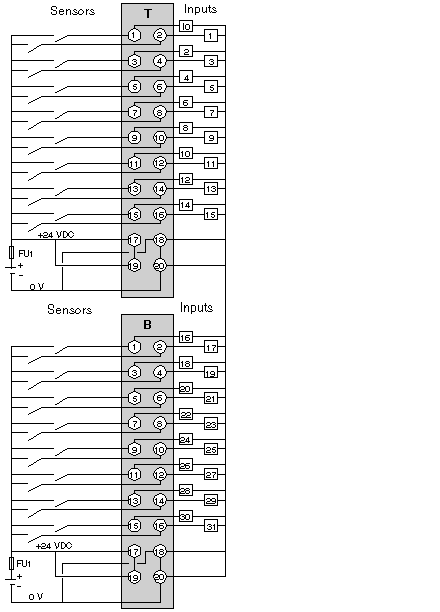

Module connection
The following diagram shows the connection of the module to the sensors.
FU1
0.5 A quick-blow fuse
