Connecting the alternating voltage TSX DEY 16A2 module
(Original Document)
About us
At a Glance
The alternating voltage
TSX DEY 16A2
module comprises 16 x 24 VAC type 2 inputs.
This module is fitted with a removable connection terminal block for the connection of inputs.
Circuit diagram

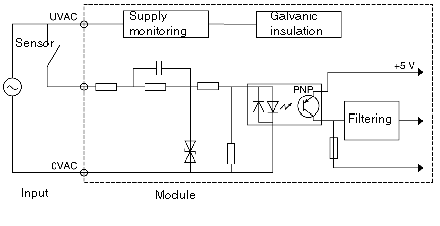

The circuit diagram for an input is shown below.
Module connection

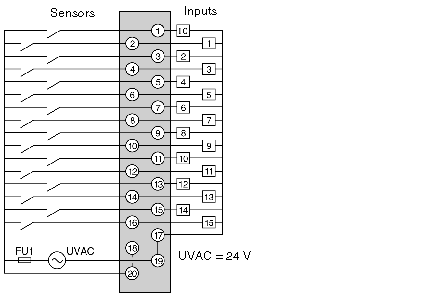

The following diagram shows the connection of the module to the sensors.
FU1
0.5 A quick-blow fuse
