Connecting the TSX DEY 16A4 module
(Original Document)
About us
At a Glance
The
TSX DEY 16A4
module comprises 16 x 120 VAC type 2 inputs.
This module is fitted with a removable connection terminal block for the connection of inputs.

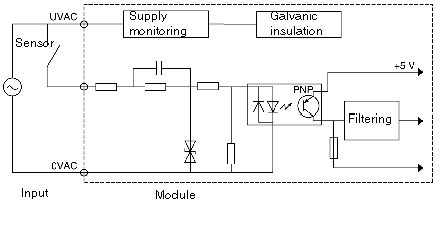

Circuit diagram
The circuit diagram for an input is shown below.

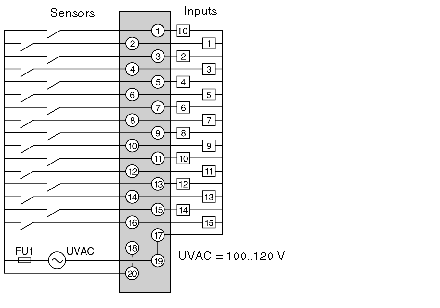

Module connection
The following diagram shows the connection of the module to the sensors.
FU1
0.5 A quick-blow fuse
