Connecting the TSX DEY 16D2 module
(Original Document)
About us
At a Glance
The
TSX DEY 16D2
module comprises 16 x 24 VDC inputs, with type 2 positive logic.
This module is fitted with a removable connection terminal block for the connection of inputs.

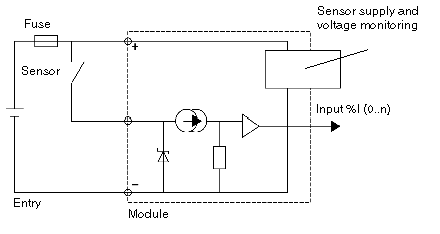

Principle Diagram
The circuit diagram for an input is shown below.
Module connection
The following diagram shows the connection of the module to the sensors.
FU1
0.5 A quick-blow fuse
