Connecting the TSX DEY 08D2 module
(Original Document)
About us
At a Glance
The
TSX DEY 08D2
module comprises 8 x 24 VDC inputs, with type 2 positive logic.
This module is fitted with a removable connection terminal block for the connection of inputs.
Principle Diagram

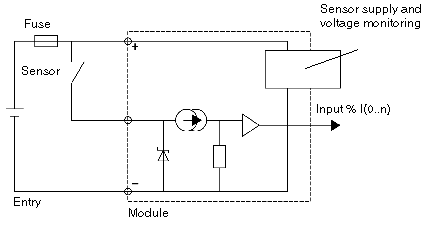

The circuit diagram for an input is shown below.
Module connection

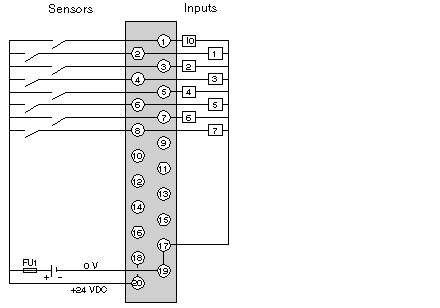

The following diagram shows the connection of the module to the sensors.
FU1
0.5 A quick-blow fuse
