Reflex function block: Retriggerable monostable
(Original Document)
About us
Role
This function launches an action of duration ti, with the possibility of extending it for an identical duration.
Structure
The table below shows the block's different interfaces.
Name
Meaning
Illustration
E
Monostable input.
x
Monostable's physical output.
x Aux
Block's internal auxiliary output.
Operation
This table describes the different operating phases of the retriggerable monostable.
Phase
Description
1
On the rising edge of input E (on-delay):
  • time-out ti is launched (time-base of 0.1ms),
  • outputs x and x Aux change to 1.
2
When time-out ti is over, outputs x and x Aux change to 0.
If a new rising edge for input E occurs before time-out ti has elapsed, outputs x and x Aux remain at 1 for a further time-out ti.
Illustration

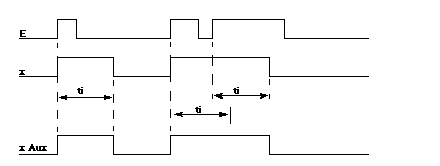

The illustration below shows the trend diagram of the retriggerable monostable function block.
