General Presentation of X80 Discrete I/O Modules

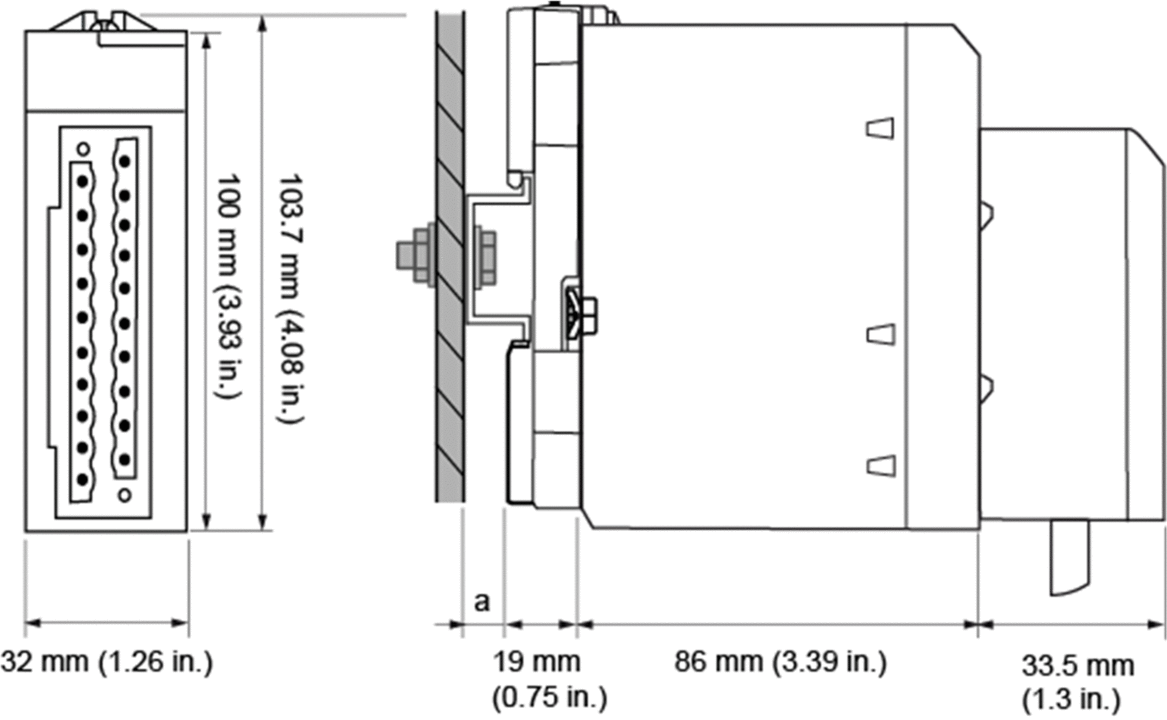

X80 Discrete I/O Module with a 20-pin removable terminal block
a DIN-rail depth: the value depends on the DIN-rail type used in your platform.

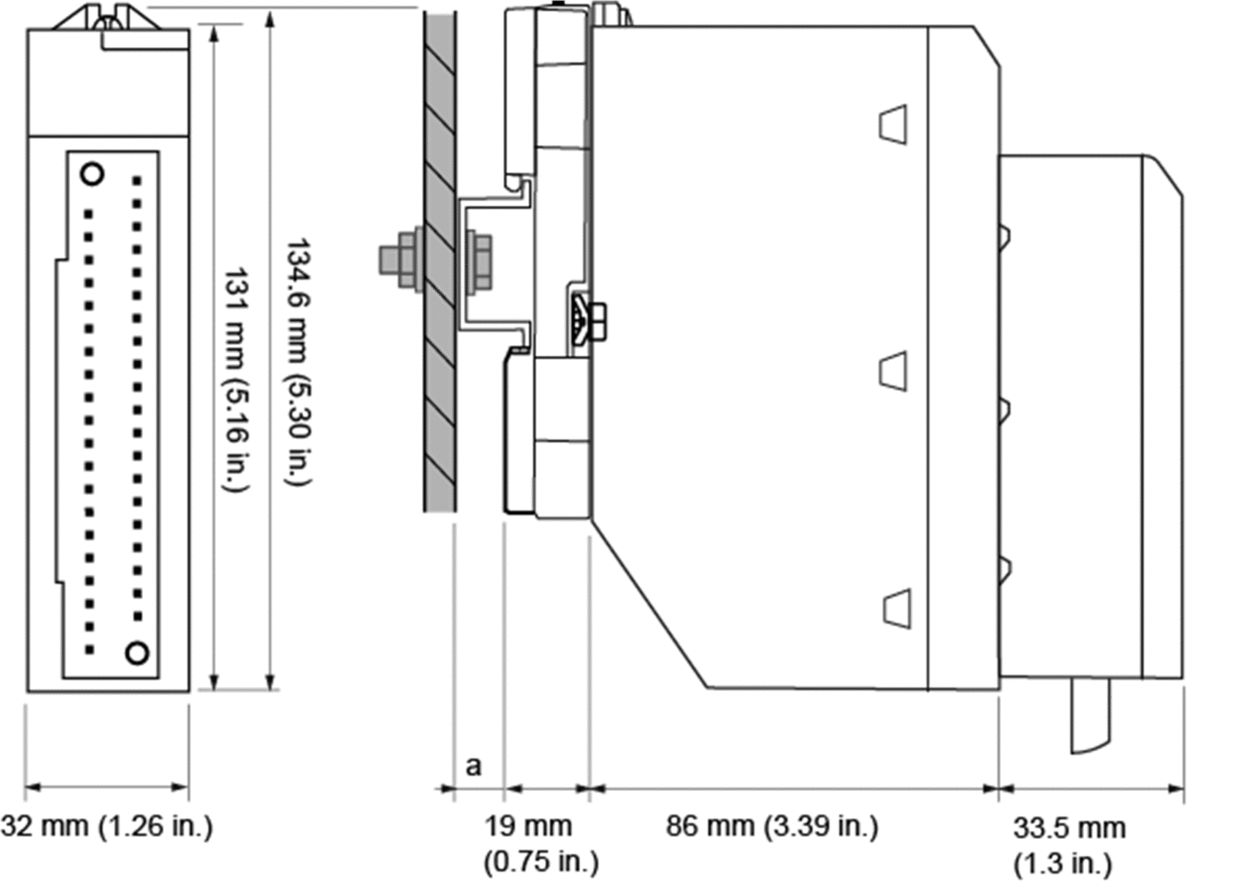

X80 Discrete I/O Module with a 40-pin removable terminal block
a DIN-rail depth: the value depends on the DIN-rail type used in your platform. Refer to Mounting the Racks.

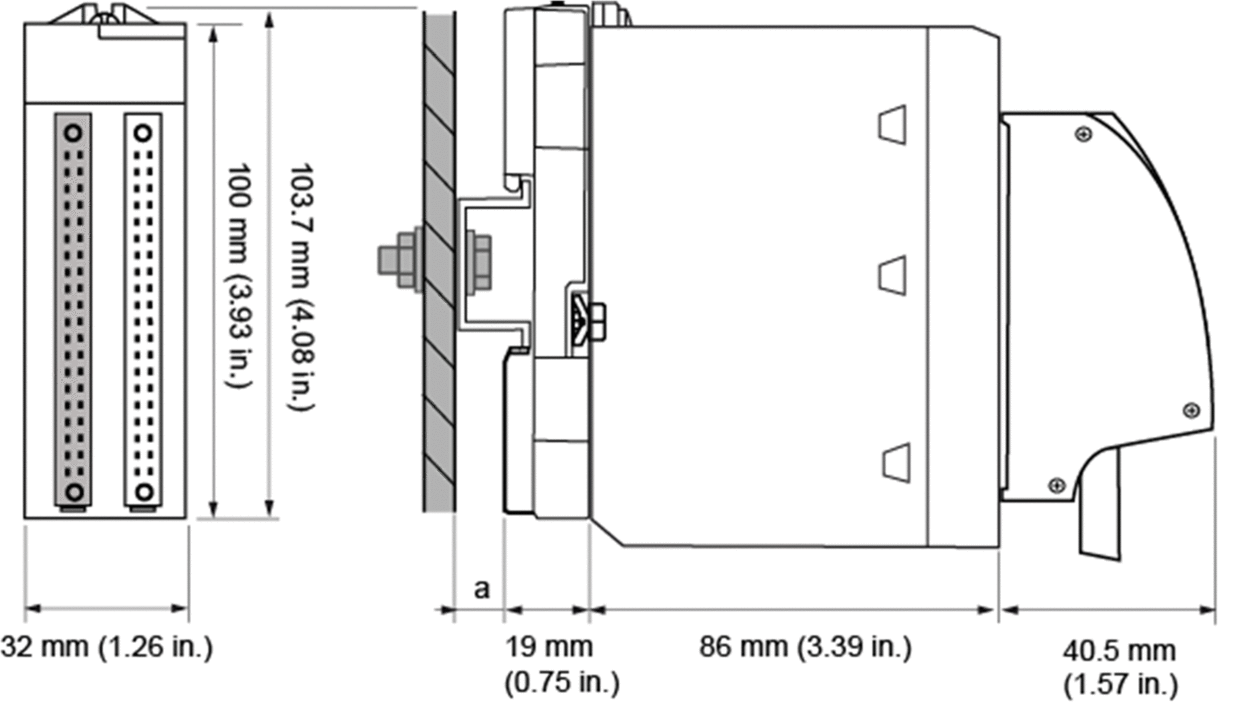

X80 Discrete I/O Module with 40-pin FCN-type connectors
a DIN-rail depth: the value depends on the DIN-rail type used in your platform.
Dimensions of X80 Discrete Modules
Module reference |
Module dimension |
Installation depth(1) |
||
|---|---|---|---|---|
Width |
Height |
Module alone |
||
X80 Discrete I/O Modules with a 20-pin removable terminal block |
||||
BMXDDI1602(H) |
32 mm (1.26 in.) |
103.7 mm (4.08 in.) |
86 mm (3.39 in.) |
119.5 mm (4.69 in.)(1) |
BMXDDI1603(H) |
||||
BMXDDI1604(T) |
||||
BMXDAI1602(H) |
||||
BMXDAI1603(H) |
||||
BMXDAI1604(H) |
||||
BMXDAI0805(H) |
||||
BMXDAI0814 |
||||
BMXDDO1602(H) |
||||
BMXDDO1612(H) |
||||
BMXDRA0804(T) |
||||
BMXDRA0805(H) |
||||
BMXDRA0815(H) |
||||
BMXDRA1605(H) |
||||
BMXDAO1605(H) |
||||
BMXDDM1622(H) |
||||
BMXDDM1625(H) |
||||
X80 Discrete I/O Modules with a 40-pin removable terminal block |
||||
BMXDAI1614(H) |
32 mm (1.26 in.) |
134.6 mm (5.30 in.) |
86 mm (3.39 in.) |
119.5 mm (4.69 in.)(1) |
BMXDAI1615(H) |
||||
BMXDRC0805(H) |
||||
BMXDAO1615(H) |
||||
X80 Discrete I/O Modules with 1 or 2 40-pin FCN-type connectors |
||||
BMXDDI3202(K) |
32 mm (1.26 in.) |
103.7 mm (4.08 in.) |
86 mm (3.39 in.) |
126.5 mm (4.96 in.)(1) |
BMXDDI3202(KH) |
||||
BMXDDO3202(K) |
||||
BMXDDO3202(KC) |
||||
BMXDDM3202(K) |
||||
BMXDDI6402(K) |
||||
BMXDDI6402(KH) |
||||
BMXDDO6402(K) |
||||
BMXDDO6402(KC) |
||||
(1) DIN-rail depth (a) is not included. |
||||
