At a Glance
The modules with 40-pin FCN type connections require the latter to be connected to the module. These fitting operations (assembly and disassembly) are described below.
| DANGER | |
|---|---|
ELECTRICAL SHOCK FCN type connector must be connected or disconnected with
sensor and pre-actuator voltage switched off. Failure to follow these instructions will result in death or serious injury. | |
| CAUTION | |
|---|---|
EQUIPMENT DAMAGE Do not plug an AC connector on a DC module. This would
cause equipment damage. Failure to follow these instructions can result in injury or equipment damage. | |
Installing the Connector
The following table shows the procedure for assembling the connector onto modules:

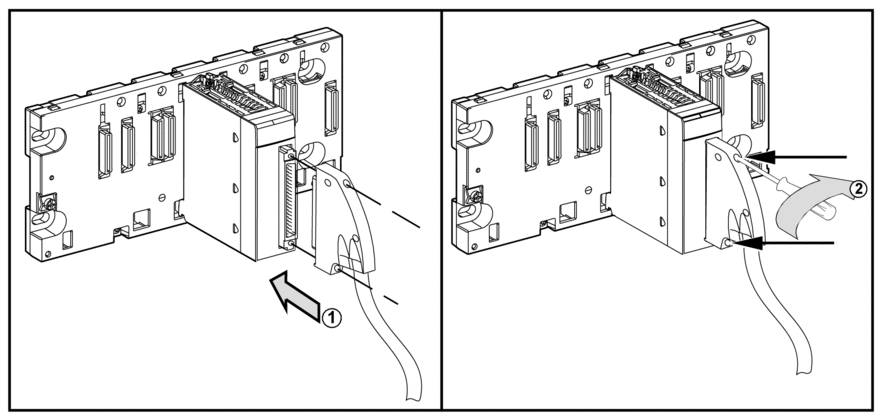

Assembly procedure:
Step |
Action |
|---|---|
1 |
Once the module is in place on the rack, insert the FCN connector of the cable into the module’s connector, as shown above. |
2 |
Fix the connector to the module by tightening the 2 mounting screws located on the lower and upper parts of the terminal block. Tightening torque: 0.4 N•m (0.30 lbf-ft). |
NOTE: If the screws are not tightened, there is
a risk that the terminal block will not be properly fixed to the module.
