Altitude Operating Conditions
The characteristics in the table below apply to the modules BMX DAO 1615 and BMX DAO 1615H for use at altitude up to 2000 m (6560 ft). When the modules operate above 2000 m (6560 ft), apply additional derating.
For detailed information, refer to chapter Operating and Storage Conditions.
General Characteristics
| CAUTION | |
|---|---|
OVERHEATING HAZARD Take into account the temperature derating of the discrete
I/O modules at the installation to prevent the device from overheating
and/or deteriorating. Failure to follow these instructions can result in injury or equipment damage. | |
This table presents the general characteristics for the BMX DAO 1615 and BMX DAO 1615H modules:
Module type |
24...240 Vac16-channel Isolated Triac Output |
||
Operating temperature |
BMX DAO 1615 |
0...60 ºC (32...140 ºF) |
|
BMX DAO 1615H |
-25...70 ºC (-13...158 ºF) |
||
Temperature derating |

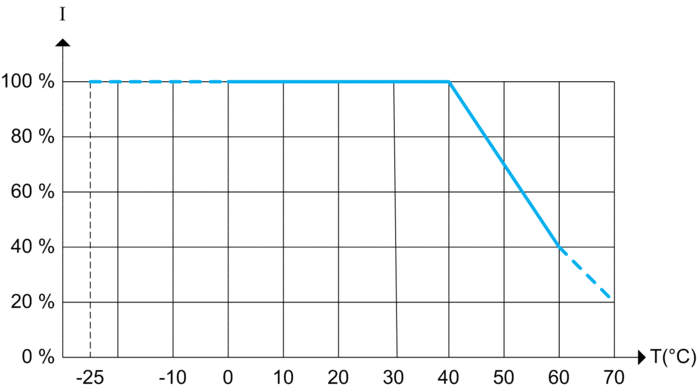

Apply the following derating curve (total module output current (in %) versus ambient temperature (in °C):  NOTE: The curves apply to the BMX DAO 1615 in the temperature range 0...60 °C (32 °F...140 °F)
and apply to the BMX DAO 1615H in the temperature range -25...70
°C (-13...158 °F).
|
||
Nominal values |
Voltage |
24...240 Vac |
|
Current |
3 A per channel. |
||
Operating range |
Voltage |
20...264 Vac |
|
Frequency |
47...63 Hz |
||
Voltage minimum and maximum |
Voltage drop at state 1 |
≤ 1.55 Vac |
|
Maximum input voltage |
300 Vac during 10 s 400 Vac during one cycle |
||
Current minimum and maximum |
Load current (minimum) |
5 mA minimum. |
|
Current / 4 contiguous channels |
4 A maximum continuous for the sum of the 4 channels. |
||
Current / module |
10 A maximum continuous. |
||
Maximum inrush current (rms) |
30 A per channel for 1 cycle. 20 A per channel for 2 cycles. 10 A per channel for 3 cycles. |
||
Leakage current at state 0 |
≤ 2.5 mA at 240 Vac ≤ 2 mA at 115 Vac ≤ 1 mA at 48 Vac ≤ 1 mA at 24 Vac |
||
Response time |
≤ 0.5 x (1/F) |
||
Built-in protection |
Against inductive over voltage |
None. Fit an RC circuit or a ZNO type over voltage limiter in parallel on each pre-actuator appropriate to the voltage in use |
|
Against short-circuits and overloads |
None. Fit a 4 A fast blow fuse on each channel. |
||
Output protection (internal) |
RC snubber suppression. |
||
Dielectric strength |
Channel to X-bus |
1780 Vac, 50/60 Hz for 1 min. |
|
Channel to channel |
1500 Vac, 50/60 Hz for 1 min. |
||
Insulation Resistance |
Channel to X-bus |
>10 MΩ (below 500 Vdc) |
|
Channel to channel |
>10 MΩ (below 500 Vdc) |
||
Applied dV/dt |
400 V/μs |
||
Backplane consumption |
24 V |
Typical |
50 mA |
Maximum |
60 mA |
||
3.3 V |
Typical |
61 mA |
|
Maximum |
87 mA |
||
