At a Glance
The BMX DRA 0815 module is fitted with a removable 20-pin terminal block for the connection of eight relay output channels.
Output Circuit Diagram
The following diagram shows the circuit of a relay output.
Module Connection
| DANGER | |
|---|---|
HAZARD OF ELECTRICAL SHOCK, EXPLOSION OR ARC FLASH Switch off the sensor and pre-actuator voltage before
connecting or disconnecting the module. Failure to follow these instructions will result in death or serious injury. | |
| CAUTION | |
|---|---|
LOSS OF OUTPUT FUNCTION Install the correct rating and type of fuse. Failure to follow these instructions can result in injury or equipment damage. | |

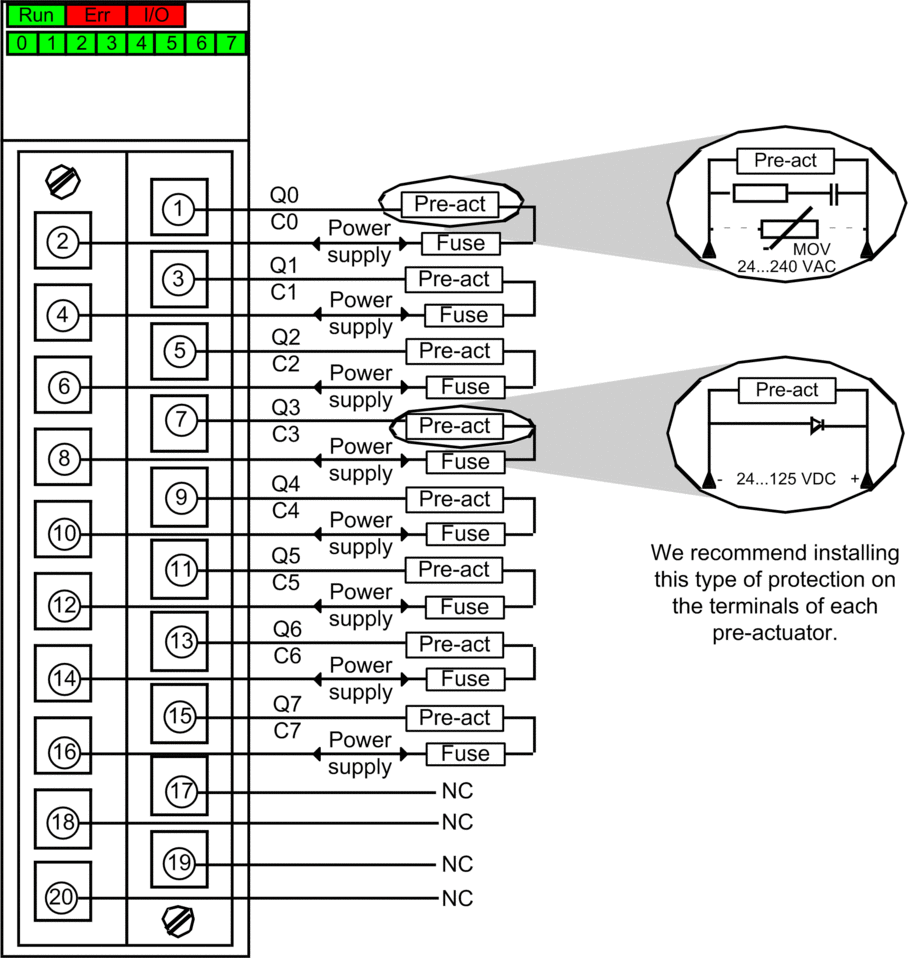

The following diagram shows the connection of the module to the pre-actuators.
power supply: 24...125 VDC or 24...240 VAC
fuse: Use appropriate fast-blow fuse for each relay.
NC: not connected
