At a Glance
The BMX DDM 3202 K module is fitted with a 40-pin connector for the connection of sixteen input channels and sixteen output channels.
Input Circuit Diagram

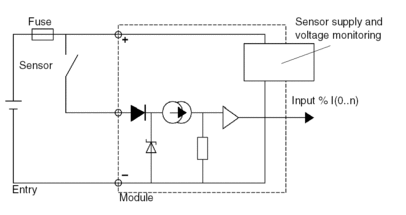

The following diagram shows the circuit of a direct current input (positive logic).
Output Circuit Diagram

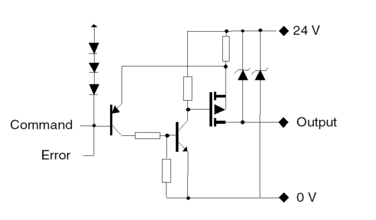

The following diagram shows the circuit of a direct current output (positive logic).
Module Connection
| DANGER | |
|---|---|
HAZARD OF ELECTRICAL SHOCK, EXPLOSION OR ARC FLASH Switch off the sensor and pre-actuator voltages before
connecting or disconnecting the module. Failure to follow these instructions will result in death or serious injury. | |
| CAUTION | |
|---|---|
LOSS OF INPUT FUNCTION Install the correct rating and type of fuse. Failure to follow these instructions can result in injury or equipment damage. | |

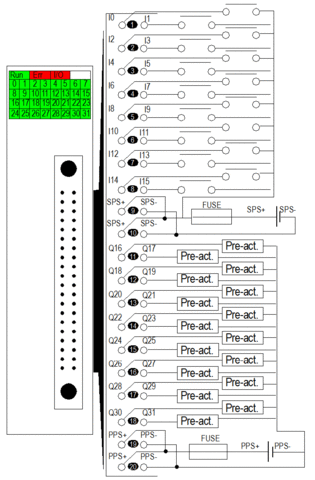

The following diagram shows the connection of the module to the sensors and pre-actuators.
power supply: 24 VDC
input fuse: fast blow fuse of 0.5 A
output fuse: fast blow fuse of 2 A
pre-act: pre-actuator
SPS: sensor power supply
PPS: pre-actuator power supply
Sensor Power Outage
After a power sensor outage, if the check box is not selected in the module configuration screen then the digital input can stay active.
| WARNING | |
|---|---|
DIGITAL INPUT STATE INACTIVE AFTER A SENSOR POWER OUTAGE Do not click to clear the check box in the module configuration
screen to guarantee the digital input state inactive after sensor
power outage. Failure to follow these instructions can result in death, serious injury, or equipment damage. | |
To access the check box, refer to chapter How to Modify the External Power Supply Error Monitoring Parameter.
After the sensor power outage, the I/O (red) LED of the module switches on and the last recorded position of the sensor is displayed by the input channel status LED's.
| WARNING | |
|---|---|
CHANNEL LED INFORMATION NOT MATCHING SENSORS POSITION After a sensor power outage:
Failure to follow these instructions can result in death, serious injury, or equipment damage. | |
