At a Glance

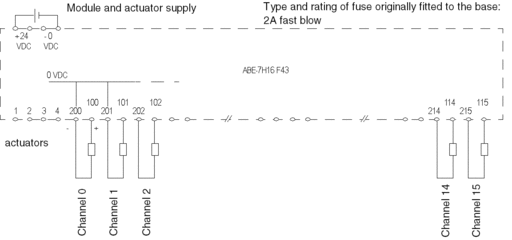

This is an overview of the actuator connections on TELEFAST 2 bases.

Illustration

Description of the connection terminal blocks.

Illustration

Output connection functions.

Functionality per channel:

  • original fitted 0.125 A fuse

  • isolator cuts the ‘-’ and the channel signal simultaneously

NOTE: Terminals 200..215 are connected to the ‘-’ polarity of the supply.
