At a Glance

The catalog of TELEFAST 2 bases for discrete input/output modules is shown here.

Catalog

The table below shows the catalog of connection interface bases for 8/12/16-channel discrete I/Os.

Reference ABE-7H••

08R10

08R11

08R21

08S21

12R50

16R50

12R10

12R20

12R21

16R10

16R11

16R20

16R21

16R23

16R30

16R31

12S21

16S21

16S43 (1)

16F43 (2)

Base types

Connection interface bases for 8/12/16-channel discrete I/Os.

Sub groups

8-channel bases

Compact 12 and 16-channel bases

12 and 16-channel bases

Illustration

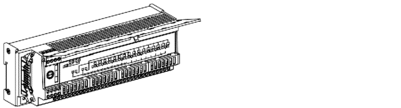

TELEFAST 2 base

TELEFAST 2 base

Description

-

with 1 isolator/channel

-

-

with 1 isolator/channel

with 1 fuse + 1 isolator/channel

(1) for inputs

(2) for outputs

Illustration

The principle for identifying the connection interface bases for 8/12/16-channel discrete I/Os is as follows.

Description

The table below describes the different elements which make it possible to identify the connection interface bases for 8/12/16-channel discrete I/Os.

Number

Description

(1)

08 = 8-channel base

12 = 12-channel base

16 = 16-channel base

(2)

Primary function:

  • R = simple connection

  • S = isolator/channel

  • F = fuse/channel

(3)

1 = with 1 screw terminal per channel on 1 level

2 = with 2 screw terminals per channel on 2 levels

3 = with 3 screw terminals per channel on 3 levels

4 = with 2 screw terminals per channel on 1 level

5 = with 1 screw terminal per channel on 2 levels

(4)

0 or even number = without LED display per channel

odd number = with LED display per channel

Catalog

The table below shows the catalog of bases for connection and adaptation interfaces for inputs with 16 isolated channels.

ABE-7S•• reference

16E2B1

16E2E1

16E2E0

16E2F0

16E2M0

Base types

Bases for connection and adaptation interfaces for inputs with 16 isolated channels.

Illustration

TELEFAST 2 base

Description

16 x 24 VDC inputs

16 x 48 VDC inputs

16 x 48 VAC inputs

16 x 110...120 VAC inputs

16 x 220...240 VAC inputs

The table below shows the catalog of bases for connection and adaptation interfaces for static outputs with 8 and 16 channels.

ABE-7S•• reference

08S2B0

08S2B1

16S2B0

16S2B2

Base types

Bases for connection and adaptation interfaces for static outputs with 8 and 16 channels.

Sub groups

8-channel bases

16-channel bases

Illustration

TELEFAST 2 base

TELEFAST 2 base

Description

8 static 24 VDC / 0.5A outputs, with error detection transfer to PLC.

8 static 24 VDC / 2A outputs, with error detection transfer to PLC.

16 static 24 VDC / 0.5A outputs, with error detection transfer to PLC.

16 static 24 VDC / 0.5A outputs, without error detection transfer to PLC.

The table below shows the catalog of bases for connection and adaptation interfaces for relay outputs with 8 and 16 channels.

ABE-7R•• reference

08S111

08S210

16S111

16S210

16S212

Base types

Bases for connection and adaptation interfaces for relay outputs with 8 and 16 channels.

Sub groups

8-channel bases

16-channel bases

Illustration

TELEFAST 2 base

TELEFAST 2 base

TELEFAST 2 base

Description

8 relay outputs, 1 F with + or alternating polarity distribution.

8 relay outputs, 1 F, potential free contact.

16 relay outputs, 1 F, 2 x 8 shared + or alternating.

16 relay outputs, 1 F, potential free contact.

16 relay outputs, 1 F with distribution of the 2 polarities by 8-channel group.

The table below displays the catalog entry showing the connection base for the adapter splitting 16 channels into 2 x 8 channels.

ABE-7A•• reference

CC02

Base types

Bases for adapter splitting 16 channels into 2 x 8 channels.

Illustration

TELEFAST 2 base

Description

Allows splitting of:

  • 16 channels into two x 8 channels

  • 12 channels into 8 channels + 4 channels

The table below shows the catalog of output adaptation interface bases with or without removable electromechanical or static relays with 16 channels.

ABE-7•• reference

R16T210

P16T210

P16T214

R16T212

P16T212

P16T215

P16T318

Base types

Output adaptation interface bases with or without removable electromechanical or static relays with 16 channels

Sub groups

Output bases, 1 F, potential free contact.

Output bases, 1 F, distribution of the 2 polarities by 8-channel group.

Output base, 1 F, distribution of the 2 polarities by 4-channel group.

Illustration

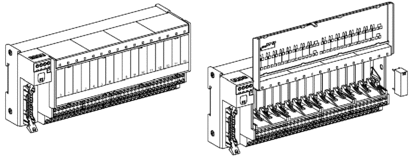

TELEFAST 2 base

Description

with 10-mm wide electro-mechanical relay

10-mm wide relay not provided

10-mm wide relay not provided, 1 fuse/channel

with 10-mm wide electro-mechanical relay

10-mm wide relay not provided

10-mm wide relay not provided, 1 fuse/channel

12.5-mm wide relay, not provided, 1 fuse + 1 isolator/channel

The table below shows the catalog of output adaptation interface bases with or without removable electromechanical or static relays with 16 channels (continued).

ABE-7•• reference

R16T230

R16T330

P16T330

P16T334

R16T231

R16T332

P16T332

R16T370

Base types

Output adaptation interface bases with or without removable electromechanical or static relay with 16 channels (continued).

Sub groups

Output bases, 1 OF, potential free contact.

Output bases, 1 OF, shared by 8-channel group.

Output bases, 1 OF, distribution of the 2 polarities by 8-channel group.

Output bases, 2 OF, potential free contact.

Illustration

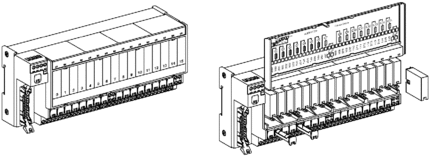

TELEFAST 2 base

Description

with 10-mm wide electro-mechanical relay

with 12.5-mm wide electro-mechanical relay

12.5-mm wide relay, not provided

12.5-mm wide relay, not provided, 1 fuse/channel

with 10-mm wide electro-mechanical relay

with 12.5-mm wide electro-mechanical relay

12.5-mm wide relay, not provided

with 12.5-mm wide electro-mechanical relay

The table below shows the catalog of input bases for 12.5-mm wide static relays.

ABE-7P•• reference

16F310

16F312

Base types

Input bases for 12.5-mm wide static relays

Illustration

TELEFAST 2 base

Description

potential free

distribution of the 2 polarities by 8-channel group
