General Information about the SSI Module BMX EAE 0300

General Information about the SSI Module BMX EAE 0300

Original instructions

Definition

The SSI module BMX EAE 0300 is a 3-channel, synchronous serial interface, absolute encoder interface.

It supports:

3 channels of SSI inputs
1 reflex output for each SSI channel
2 capture inputs for the 3 SSI channels
8 to 31 bits data width
4 ranks of baud rates (100 kHz, 200 kHz, 500 kHz, 1 MHz)
capture and compare functions

Illustration

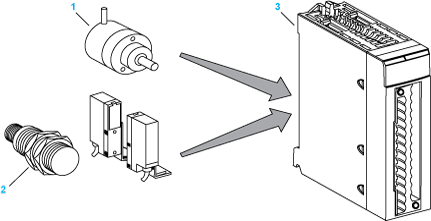

The illustration below shows the basic components of an absolute encoder system:

Absolute encoder

Proximity sensors

SSI module BMX EAE 0300
