Using a TELEFAST 2 (ABE-7CPA01) connection base, a standard 15 pin female SUB-D connection can be transformed into a screw connection base connection with:
-
32 terminals on two rows, where the different sensors and their supplies can be connected,
-
4 terminals for restart (2 GND terminals + 2 N1 terminals for specific restarts),
-
4 terminals for connecting the sensor supply.

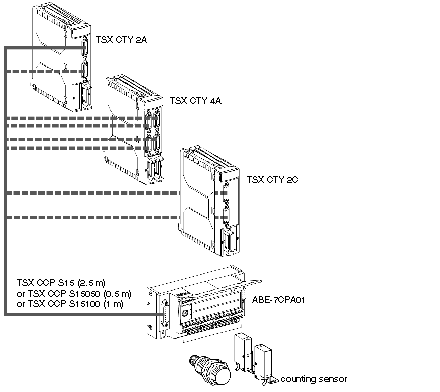

This means proximity detector type sensors can be quickly connected onto a counting channel of the TSX CTY 2A, TSX CTY 4A and TSX CTY 2 modules.
Illustration:

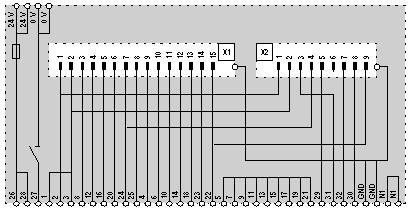

The 9 pin SUB-D connector means information can be reported to an Altivar when this base is used with analog inputs/outputs.
Illustration:

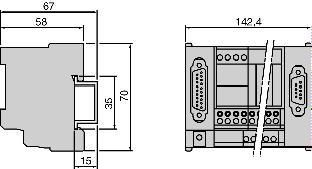

Dimensions
Mounting
The ABE-7CPA01 connection base is mounted on a DIN mounting rail, which has a width of 35 mm.
