Principle for connecting counter proximity sensors
|
|
|
(Original Document)
|
|
Principle for connecting counter proximity sensors
|
|
|
(Original Document)
|
|

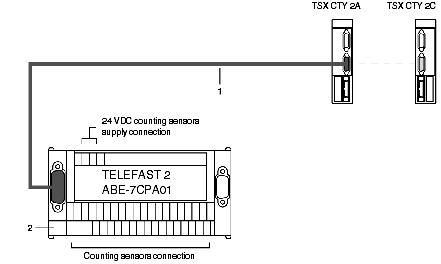

Number
|
Description
|
|---|---|
|
1
|
TSX CCP S15 cable (2.5m long) or TSX CCPS15050 (0.5m long) or TSXCCP S15100 (1m long), equipped with a high-density 15-pin SUB-D connector and a standard 15-pin SUB-D connector. This cable is used to connect the counting channel to the TELEFAST 2 (ABE-7CPA01) base. It carries the various relevant signals to the counter channel.
|
|
2
|
TELEFAST 2 connection base, reference ABE-7CPA01:
Used to connect the count sensors to their supply for the relevant channel.
|
