The counter inputs of TSX CTY 2A/4A/2C modules can receive pulses generated by:
-
PNP / NPN type 2 / 3-wire proximity sensors,
-
incremental encoders with 5 V differential output signals and RS 422/485 line transmitters, on a 10-30 V supply,
-
incremental encoders with 5 V differential output signals and RS 422/485 line transmitters, on a 5 V supply, incremental encoders with 10-30 V output signals and Totem Pole, on a 10-30 V supply,
-
an absolute encoder with SSI serial outputs, RS 485 standard interface (TSX CTY 2C only),
-
absolute encoders with parallel outputs and a TELEFAST ABE7CPA11 adapter (TSX CTY 2C only).

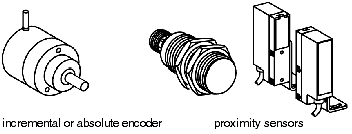

This diagram shows the different types of incremental encoder:
