The BMX EHC 0200 counting module enables the counting or downcounting of pulses to be performed. It has the following functions:
-
Enable
-
Capture
-
Comparison
-
Homing or reset to 0
-
2 physical outputs
Structure of a counter channel

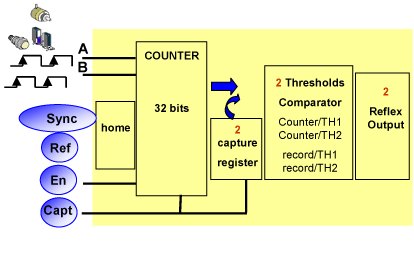

The following illustration shows the overall structure of a counter channel:
