Physical Description of the Counting Module
Original instructions
About us
Illustration

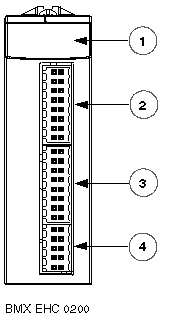

The figure below present the counting module BMX EHC 0200 :
Physical Elements of the Modules
The table below presents the elements of the counting module BMX EHC 0200:
Number
Description
1
Module state LEDs:
  • State LEDs at module level
  • State LEDs at channel level
2
16-pin connector to connect the counter 0 sensors
3
16-pin connector to connect the counter 1 sensors
4
10-pin connector to connect:
  • Auxiliary outputs
  • Sensor power supplies
Accessories
The BMX EHC 0200 module requires the use of the following accessories:
NOTE: The two 16-pin connectors and the 10-pin connector are available under the reference BMX XTS HSC 20.
