Procedure for converting a PL7 DFB into Control Expert
(Original Document)
About us
Introduction
The PL7 application converter is built into the Control Expert software. The DFB to be converted is accessible using the command File → Open, which allows you to start the conversion.
Conversion procedure
The following table describes the procedure for converting a PL7 DFB into Control Expert.
Step
Action
1

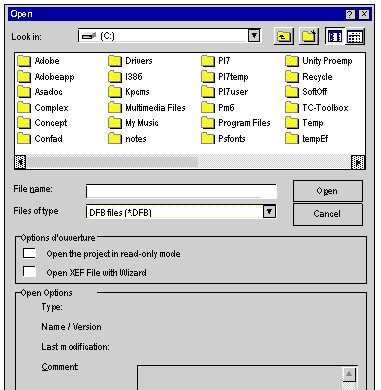

Choose the Open command from the File menu.
2
In the Files of type field, select the type .dfb (DFB file).
3
Choose the hard drive and/or the directory containing the file to be converted.
4
Select the file (.dfb) to be opened (and therefore converted). The name of the file then appears in the File name field.
5
Confirm with Open.
6
The conversion procedure is then started. The status bar shows how the procedure is progressing.
7
At the end of conversion, a screen appears indicating the end of the procedure.
