Following are examples of the different types of addressing for TSX SCY 21601 communication modules.
The examples are based on a Premium type processor.
NOTE: These types of communication module are limited according to processor. Please refer to the installation manual to determine the number of expert communication channels.

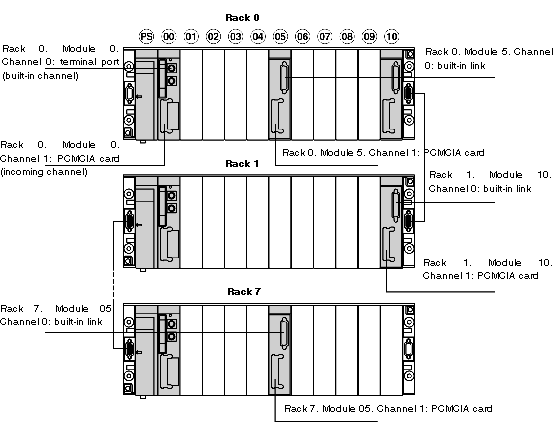

The module’s communication channels can have the following addresses:
