Representation

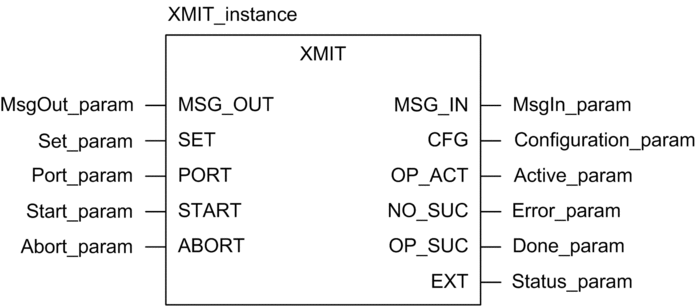

FBD Representation

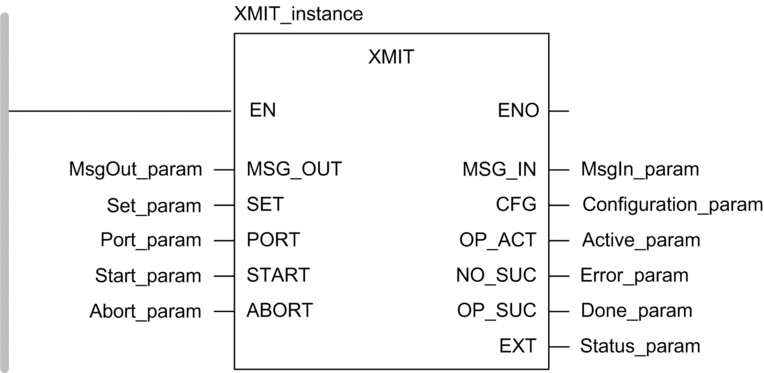

LD Representation

IL representation

CAL XMIT_instance(START:=Start_param, ABORT:=Abort_param,
    MSG_OUT:=MsgOut_param, SET:=Set_param, PORT:=Port_param,
    MSG_IN=>MsgIn_param, CFG=>Configuration_param,
    OP_ACT=>Active_param, NO_SUC=>Error_param,
    EXT=>Status_param)

ST representation

XMIT_instance (START:=Start_param, ABORT:=Abort_param,
    MSG_OUT:=MsgOut_param, SET:=Set_param, PORT:=Port_param,
    MSG_IN=>MsgIn_param, CFG=>Configuration_param,
    OP_ACT=>Active_param, NO_SUC=>Error_param,
    EXT=>Status_param);

Parameter Description

Description of the block parameter

Parameters	Data type	Significance
`SET`	`XMIT_SET`	Data structure for the XMIT configuration
`MSG_OUT` (1)	`ANY`	Buffer for outgoing messages (in 4x range)
`PORT`	`BYTE`	Port (0 or 1)
`START`	`BOOL`	1: Starts XMIT operation
`ABORT`	`BOOL`	1: Aborts current XMIT operation
`MSG_IN` (1)	`ANY`	Buffer for incoming messages (in 4x range)
`CFG`	`XMIT_SET`	Data structure with all components of the XMIT configuration, including the automatically set and not used variables. Only for display and must be in 4x range
`OP_ACT`	`BOOL`	1: XMIT operation in progress
`NO_SUC`	`BOOL`	1: Operation terminated UNsuccessfully
`OP_SUC`	`BOOL`	1: Operation terminated successfully
`EXT` (2)	`INT`	Displays an error code generated by XMIT
(1) No check for mapping in quad register. It may be an unlocated data.
(2) Used for another purpose with hot standby Momentum

XMIT_SET Data Structure

Element	Data type	Corresponding component in LL984 XMIT
BaudRate	WORD	4x+3 register (data rate)
DataBits	`BYTE`	4x+4 register (data bits)
Parity	`BYTE`	4x+5 register (parity)
StopBits	`BYTE`	4x+6 register (stop bits)
CommandWord	`WORD`	4x+8 register (command word)
MessageLen	`WORD`	4x+10 register (message length); in event of a terminated ASCII receipt, this component is set automatically.
RespTimeOut	`WORD`	4x+11 register (response time-out (ms))
RetryLimit	`WORD`	4x+12 register (retry limit)
XmStartDelay	`WORD`	4x+13 register (start of transmission delay (ms))
XmEndDelay	`WORD`	4x+14 register (end of transmission delay (ms)).

XMIT_CFG Data Structure

Element	Data type	Corresponding component in LL984 XMIT
FaultStatus	`WORD`	4x+1 register (fault status)
UserAvail_1	`WORD`	4x+2 register (available to user)
BaudRate	`WORD`	4x+3 register (data rate)
DataBits	`WORD`	4x+4 register (data bits)
Parity	`WORD`	4x+5 register (parity)
StopBits	`WORD`	4x+6 register (stop bits)
UserAvail_2	`WORD`	4x+7 register (available to user)
CommandWord	`WORD`	4x+8 register (command word)
MessagePtr	`WORD`	4x+9 register (message pointer)
MessageLen	`WORD`	4x+10 register (message length)
RespTimeOut	`WORD`	4x+11 register (response time-out (ms))
RetryLimit	`WORD`	4x+12 register (retry limit)
XmStartDelay	`WORD`	4x+13 register (start of transmission delay (ms))
XmEndDelay	`WORD`	4x+14 register (end of transmission delay (ms))
CurrentRetry	`WORD`	4x+15 register (current retry).
