At a Glance
For this communication function, you can call up the assisted entry screen. Please note that the assisted entry screen is not available for the Modicon M340/M580.
NOTE: The variable symbols are accepted
in the different fields of the screen.
Illustration

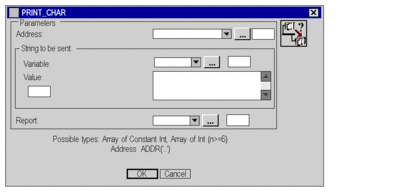

The following screen shows an example of the assisted entry screen of the function:
Address
For Premium PLCs, the possible type of object is:
ADDR(STRING).ARRAY [0..5] OF INT.
NOTE: if you enter a value directly in the field,
the assisted address entry button turns gray.
String to be sent
The string to be sent is a variable of the STRING type or an immediate value. If a STRING type variable is selected, the value field disappears.
Report
The report is an array of 4 integers, that can be located or not.
NOTE: be careful not to use several identical memory areas for report tables,
otherwise the variable read function may not work.
