Function Description

The WRITE_GDATA function is used to write shared data, or Global Data, on a Modbus Plus network.

Global Data is shared between a maximum of 64 stations on the same Modbus Plus network. Each station may write up to 32 integers, which can then be used by all stations on the network. Conversely, each station can read the 32 integers (maximum) of all the other network stations.

The additional parameters EN and ENO can be configured.

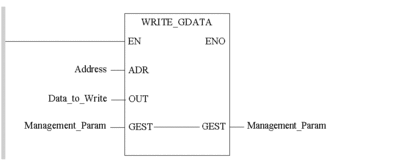

FBD representation

Representation:

LD representation

Representation:

IL representation

Representation:

LD Address
WRITE_GDATA Data_to_Write, Management_Param

ST representation

Representation:

WRITE_GDATA(Address, Data_to_Write, Management_Param);

Parameter Description

The following table describes the input parameters:

Parameter

Type

Comment

Address

ARRAY [0.. 5] OF INT

Address of the PCMCIA card that connects the Premium to the Modbus Plus network. The value of this address is: ADDR(’0.0.1.SYS’).

Note: data is written to the PCMCIA card, which then shares it.

Data_to_Write

ARRAY [n... m] OF INT

Word table containing the value of the objects to be written. This table must always be 32 integers of 16 bits in size, the maximum size of Global Data on a Modbus Plus network.

The following table describes the input/output parameters:

Parameter

Type

Comment

Management_Param

ARRAY [0.. 3] OF INT

Exchange management table.

It is not necessary to initialize the length parameter before launching the exchange.
