At a Glance

For this communication function, you can call up the assisted entry screen. Please note that the assisted entry screen is not available for Modicon M340/M580.

NOTE: The variable symbols are accepted in the different fields of the screen.

Illustration

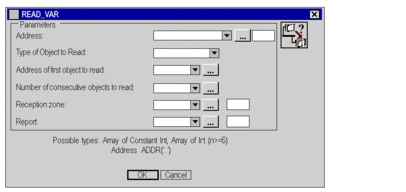

The following screen shows an example of the assisted entry screen of the function:

Address

For Premium PLCs, the possible type of object is:

  • ADDR(STRING).

  • ARRAY [0..5] OF INT.

NOTE: if you enter a value directly in the field, the assisted address entry button turns gray.

Type of object to read.

For Premium PLCs, possible choices are:

  • ‘%M’ for reading internal bits.

  • ‘%MW’ for reading internal words.

  • ‘%S’ for reading system bits.

  • ‘%SW’ for reading system words.

  • ‘%I’ for reading input bits.

  • ‘%IW’ for reading input words.

NOTE: simply choose from the solutions offered in the drop-down menu.

Address of first object to read

The possible objects are of the DINT type:

  • variables,

  • constants,

  • immediate value.

NOTE: if you enter a constant, an entry field appears to enter the constant. If you enter a variable, this can be located or not.

Number of consecutive objects to read

The possible objects are of the INT type:

  • variables,

  • constants,

  • immediate value.

NOTE: if you enter a constant, an entry field appears to enter the constant. If you enter a variable, this can be located or not.

Reception zone

The reception zone is an integer array. The size of this array depends on the number of objects to read. This integer array can be located or not.

Report

The report is an array of 4 integers.

NOTE: be careful not to use several identical memory areas for report tables, otherwise the variable read function may not work.
