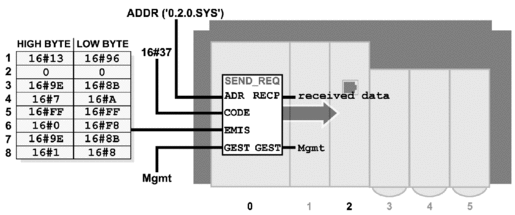

The graphic shows you how to set IP parameters for the ETY module in slot 2 with the SEND_REQ block:

Note:

• ADR: reflects the ETY’s position in slot 2.

• CODE: reflects the value of the REQUEST_CODE.

• EMIS: contains the IP parameters in Data_to_Send:

  • address (139.158.10.7)

  • subnet mask (255.255.248.0)

  • gateway (139.158.8.1)

• GEST: reflects Management_Param (management parameters).

  You have to assign a time to the third word of Management_Param. The fourth word should have the INT value 18.

• RECP: This parameter requires a minimum INT value of 1, even when no response message is returned, as in the case of an IP change request.
